CABLE TRAY SYSTEM
- Cable Tray system are used to support, hide and route cables to the different parts of a building
- Easy Access
- Cable tray system is easy to install, modify and replace
- Cable tray system is versatile and can be used in a wide range of applications
Send Enquiry
Cable tray system
A cable tray system is used to support insulated electrical cables used for control, and communication, power distribution. Cable trays are used as an alternative to wire ways or electrical conduit systems, and are commonly used for cable management in industrial and commercial construction. They are especially useful in situations where changes to a wiring system are expected, since new cables can be installed by laying them in the tray, instead of pulling them through a pipe.
Products
Perforated Cable Tray
Perforated Cable Tray
We are engaged in offering Perforated Type Cable Trays that have uniform holes and are suitable for cables that require both a degree of protection from external damages and ventilation. These are constructed from galvanized iron and mild steel.
These are corrosion resistant and highly durable metals are used in designing the stock.
SPECIFICATIONS
- Standard Collar depths of 40, 50, 75, 100mm.
- Standard Width of 50 mm, 75 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 400 mm, 500 mm, 600 mm, 700 mm, 750 mm, 1000 mm.
- Finishing – GI, PC
- Standard Thickness of 1.2 mm, 1.6 mm, 2 mm, 2.5 mm

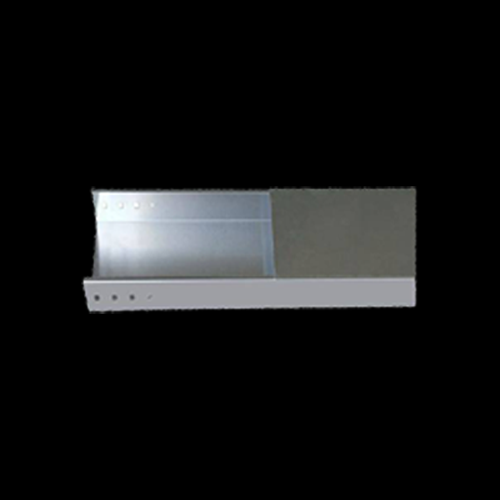

Solid Cable Tray
Generally used for minimal heat generating electrical or telecommunication applications with short to intermediate support spans 5 to 12 feet.
The main reason for selecting solid bottom cable tray (with covers) is the concern of EMI/ RFI shielding protection for very sensitive circuits. A solid bottom steel cable tray with steel covers provides a good degree of shielding if there are no breaks or holes in the completed installation.
SPECIFICATIONS
- Standard Collar depths of 40, 50, 75, 100mm.
- Standard Width of 50 mm, 75 mm, 100 mm, 150 mm, 200 mm, 250 mm, 300 mm, 400 mm, 500 mm, 600 mm, 700 mm, 750 mm, 1000 mm.
- Finishing – GI, PC
- Standard Thickness of 1.2 mm, 1.6 mm, 2 mm, 2.5 mm
Solid Cable Tray
Ladder Cable Tray
Ladder Cable Tray
Ladder Cable tray has two side rails connected by rungs. This type of cable tray is effective because the ladder rungs give you easy accessibility to the cables, from the top or bottom. The rungs of the ladder cable trays provide convenient anchors for tying down the cables in the non-horizontal cable tray runs or where the positions of the cables must be maintained in the horizontal cable tray runs.
SPECIFICATIONS
- Standard Collar depths of 50, 75, 100mm.
- Standard Width of 100 mm, 150 mm, 200 mm,250 mm ,300 mm,400 mm, 500 mm, 600 mm, 750 mm, 1000 mm.
- Finishing – GI, PC
- Standard Thickness of 1.5 mm, 2 mm, 2.5 mm
