Standing Seam Roofing Solutions

Standing Seam Roofing Sheets for Industrial & Commercial Buildings

Alfa PEB standing seam roofing sheets deliver leak-resistant, concealed-fix, and long-lasting roof performance for warehouses, factories, PEB buildings, aircraft hangars, logistics hubs, and commercial structures.

Get a Quote

Standing Seam Roofing Built for Leak-Free & Long-Life Performance.

Standing seam roofing systems are engineered for superior weather protection, thermal movement flexibility, and long-term structural reliability. Unlike conventional metal roofing, standing seam panels use concealed clip fixing technology with zero exposed fasteners eliminating roof penetrations, reducing leak risks, and improving overall roof durability. The mechanically locked seam design allows panels to expand and contract freely under temperature changes, preventing buckling, fastener failure, and water ingress over time. Ideal for industrial, commercial, and architectural steel buildings, standing seam roofing delivers a clean appearance, exceptional weather resistance, and low-maintenance performance throughout the building’s service life.

Zero Exposed Fasteners Above Waterline Mechanically Seam-Locked Weatherproof Joint Thermally Free No Buckling or Panel Stress Architecturally Clean. Long-Life Performance.

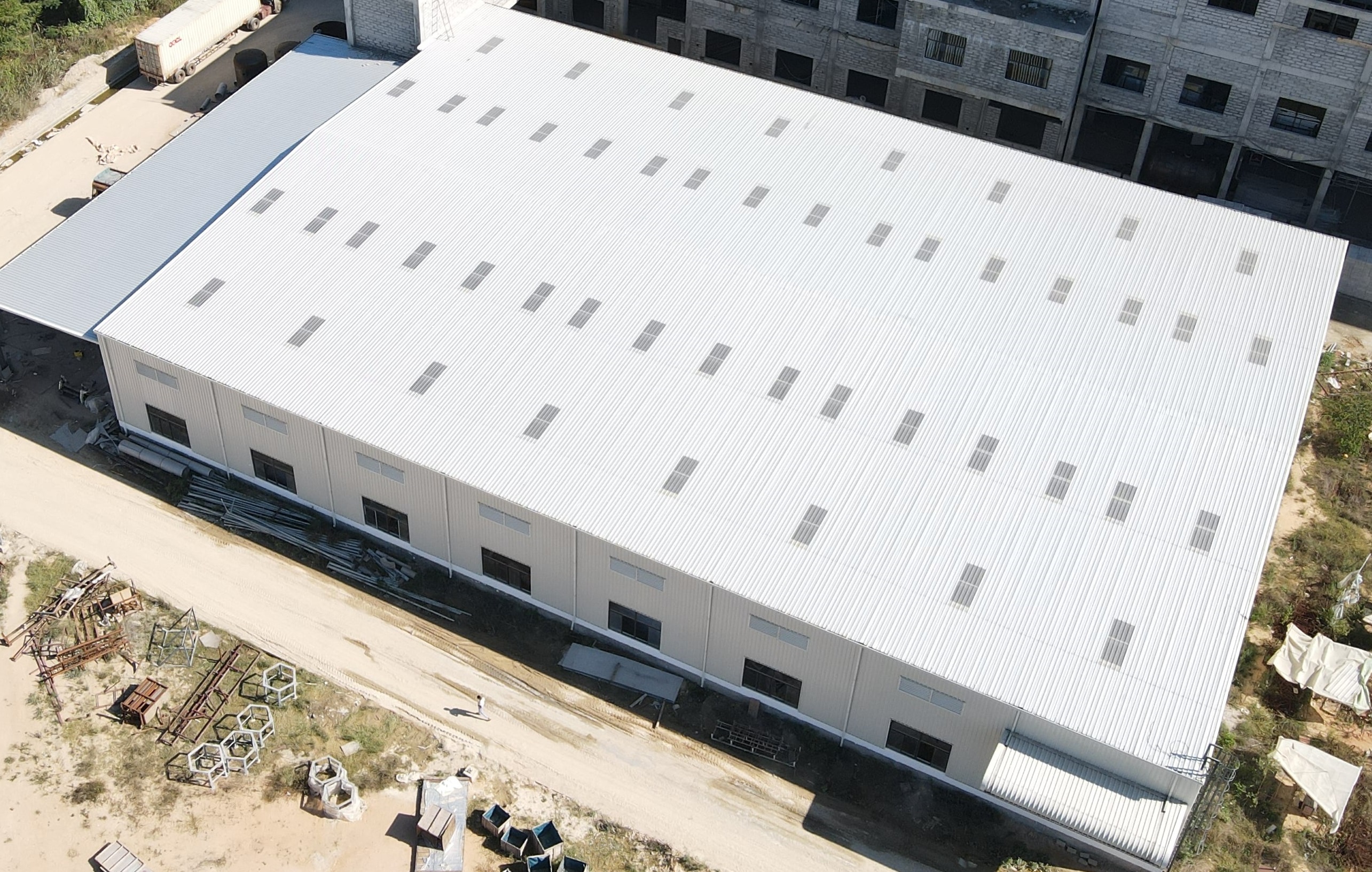

Pre-Engineered Buildings by Alfa PEB Limited

Why Choose Alfa PEB for Standing Seam Roofing Sheets?

Alfa PEB provides high-performance standing seam roofing sheets designed for leak-resistant, durable, and long-lasting roofing applications. With concealed fixing, on-site roll forming, long-length sheet installation, and excellent weather protection, our standing seam roofing systems are ideal for PEB buildings, warehouses, factories, industrial sheds, commercial buildings, and large-span roofing projects.

Leak-Resistant Roofing System

Mechanically seamed side laps help improve water tightness and reduce the risk of leakage during heavy rain and harsh weather conditions.

Concealed Fixing Design

Standing seam sheets are installed without exposed screws on the roof surface, reducing perforation and improving long-term roofing performance.

Long-Length Sheet Installation

Sheets can be roll-formed in long continuous lengths from ridge to eave, helping reduce end laps and improve roof durability.

On-Site Roll Forming

On-site production helps avoid transport damage, supports faster installation, and allows roofing sheets to be made as per project length requirements.

Suitable for Low-Slope Roofs

Standing seam roofing systems perform well on low-slope roofs and large-span buildings where water tightness and durability are important.

Durable & Low Maintenance

Colour-coated steel, concealed fastening, and reduced roof perforation help improve corrosion resistance and reduce maintenance requirements.

Technical Details.

Specifications

Roofing Sheet Specifications.

01/04

Alfa PEB offers high-quality PPGI, PPGL, and Bare Galvalume steel roofing sheets designed for strength, durability, corrosion resistance, and long-term performance. Our roofing sheets are manufactured using quality base steel, protective metallic coatings, and premium paint systems suitable for industrial, commercial, warehouse, and factory roofing applications.

The specifications below include key details such as base material, yield strength, coating type, paint finish, thickness, colour options, and applicable standards to help customers choose the right roofing sheet for their project.

Specification PPGI Steel PPGI Steel Bare Galvalume Steel
Base Metal Cold Rolled Steel Cold Rolled Steel Cold Rolled Steel
Yield Strength 240 MPa 340 MPa 240 MPa
Metallic Coating Z120 g/m² AZM 150 g/m² AZM 150 g/m²
Top Coat Paint Type RMP / SMP / PVDF2 RMP / SMP / PVDF2 Non-colour
Product Finish Matt Finish / Glossy Finish Matt Finish / Glossy Finish Natural Finish
Masking Polyethylene Guard Film Polyethylene Guard Film Polyethylene Guard Film
Top Coat Thickness 18–20 microns minimum 18–20 microns minimum -
Back Coat Epoxy / PU / Polyester Epoxy / PU / Polyester -
Back Coat Thickness 5–7 microns minimum 5–7 microns minimum -
Total Coated Thickness 0.5 mm and above 0.5 mm and above 0.5 mm and above
Top Coat Colour As per colour card As per colour card -
Back Coat Colour Grey as per standard Grey as per standard -
Confirmed Standards ASTM A653 / A653M, ASTM A755 / A755M, IS 277, IS 513, IS 14246, JIS 3312, AS 1397 ASTM A792 / A792, ASTM A755 / A755M, JIS 3312, AS 1397 ASTM A792 / A792, JIS 3312, AS 1397
Standing Seam Sheet profile

Standing Seam Roofing Sheet Profile.

02/04

Standing seam roofing sheets are designed for strong, durable, and leak-resistant roofing performance. Their concealed fixing system gives a clean finish and improved weather protection, making them suitable for PEB buildings, warehouses, factories, industrial sheds, commercial buildings, and large-span roofing projects.

Alfa PEB standing seam profiles are available in 820 mm and 485 mm effective widths, with engineered crest depth and rib design for better strength and stability.

Clear Span
Multi-Span
Product Effective Width Crest Depth Crest Distance

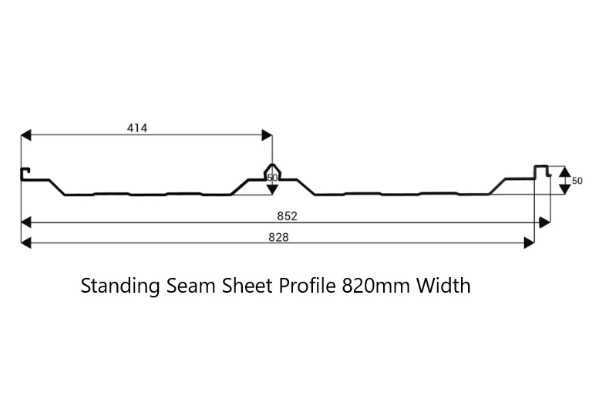

Standing Seam Sheet 820 mm 50 mm 410 mm c/c with 2 ribs at the centre for stiffening

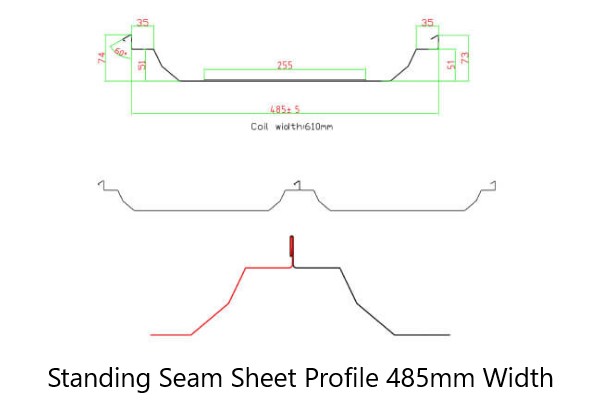

Standing Seam Sheet 485 mm 63 mm 410 mm c/c with 1 rib
Advantages

Advantages of Standing Seam Roofing Sheets.

03/04

Standing seam roofing sheets provide a strong, leak-resistant, and low-maintenance roofing solution for industrial, commercial, warehouse, and PEB buildings. With concealed fixing, mechanically seamed side laps, and long-length sheet installation, the system improves water tightness, reduces roof perforation, and enhances durability.

These roofing sheets are suitable for low-slope roofs and large-span projects, offering faster installation, corrosion resistance, design flexibility, energy efficiency, and long-term performance.

Advantage Short Description
Leak-Resistant Roofing Mechanically seamed side laps help improve water tightness and reduce leakage risk.
No Exposed Screws Concealed fixing prevents roof perforation and reduces corrosion at fixing points.
Long-Length Sheets Sheets can be produced in long lengths to reduce end laps and improve roof performance.
On-Site Roll Forming Site fabrication helps avoid sheet damage during transport and supports faster installation.
Suitable for Low-Slope Roofs Standing seam profiles perform well on low-slope roofs using continuous long sheets.
Faster Installation Roll-formed sheets and simplified fixing methods help reduce installation time.
Low Maintenance Durable profile design and concealed fixing reduce maintenance requirements.
Design Flexibility Suitable for industrial, commercial, architectural, and large-span roofing applications.
Corrosion Resistant Colour-coated steel and reduced perforation improve durability and service life.
Energy Efficient Can be used with insulation systems to improve thermal performance and energy efficiency.
Standing Seam Clips

Standing Seam Clips.

04/04

Alfa PEB standing seam clips are designed for secure and concealed fixing of standing seam roofing sheets. They help prevent roof perforation, improve leak resistance, allow thermal movement, and support long-lasting roofing performance.

These clips are suitable for industrial roofs, warehouses, factories, commercial buildings, PEB structures, and large-span roofing systems.

Clear Span
Multi-Span
Multi-Span 2
Multi-Span 2

Applications.

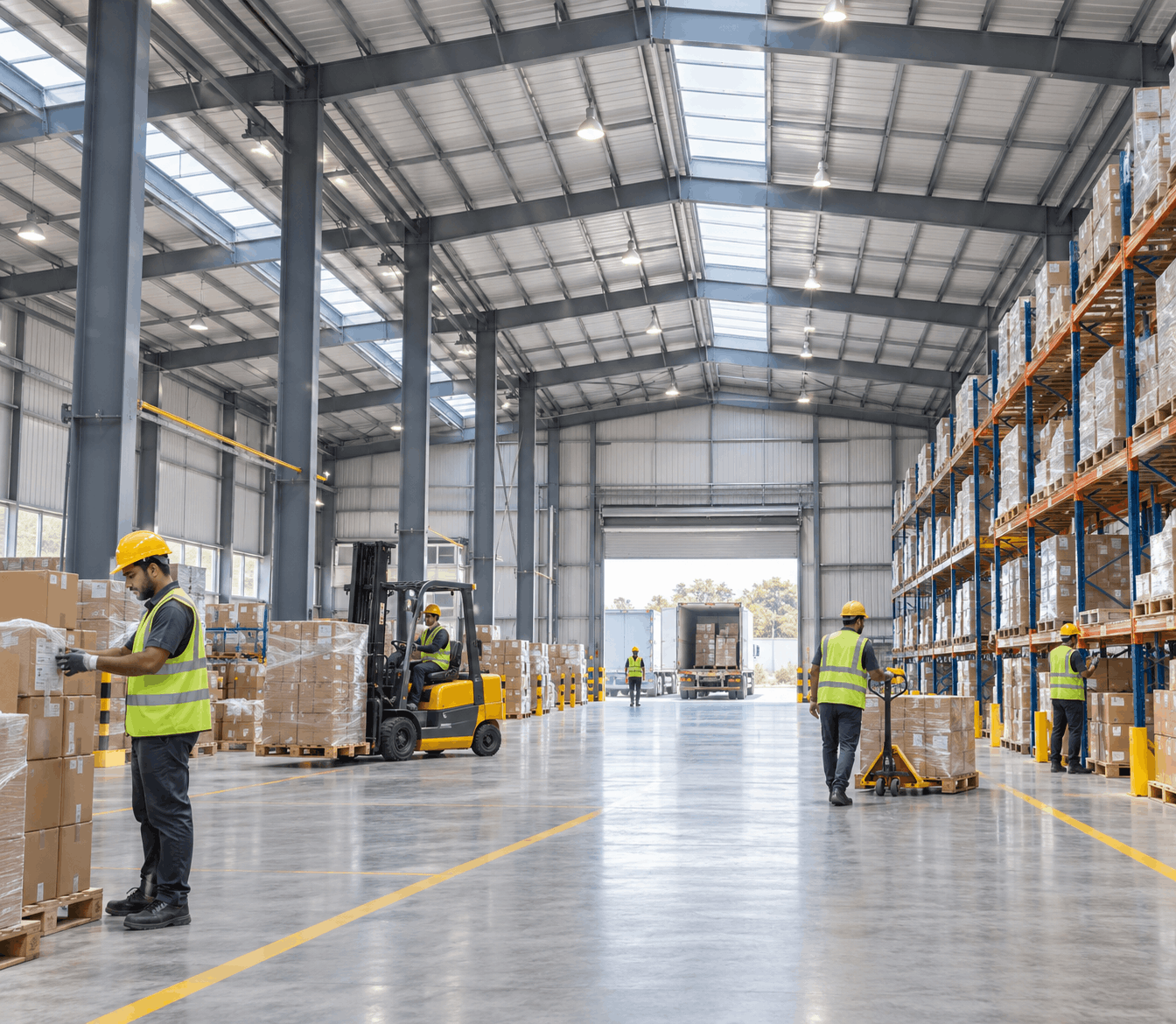

Warehouses

Durable standing seam roofing for large storage facilities requiring leak-resistant and low-maintenance roof performance.

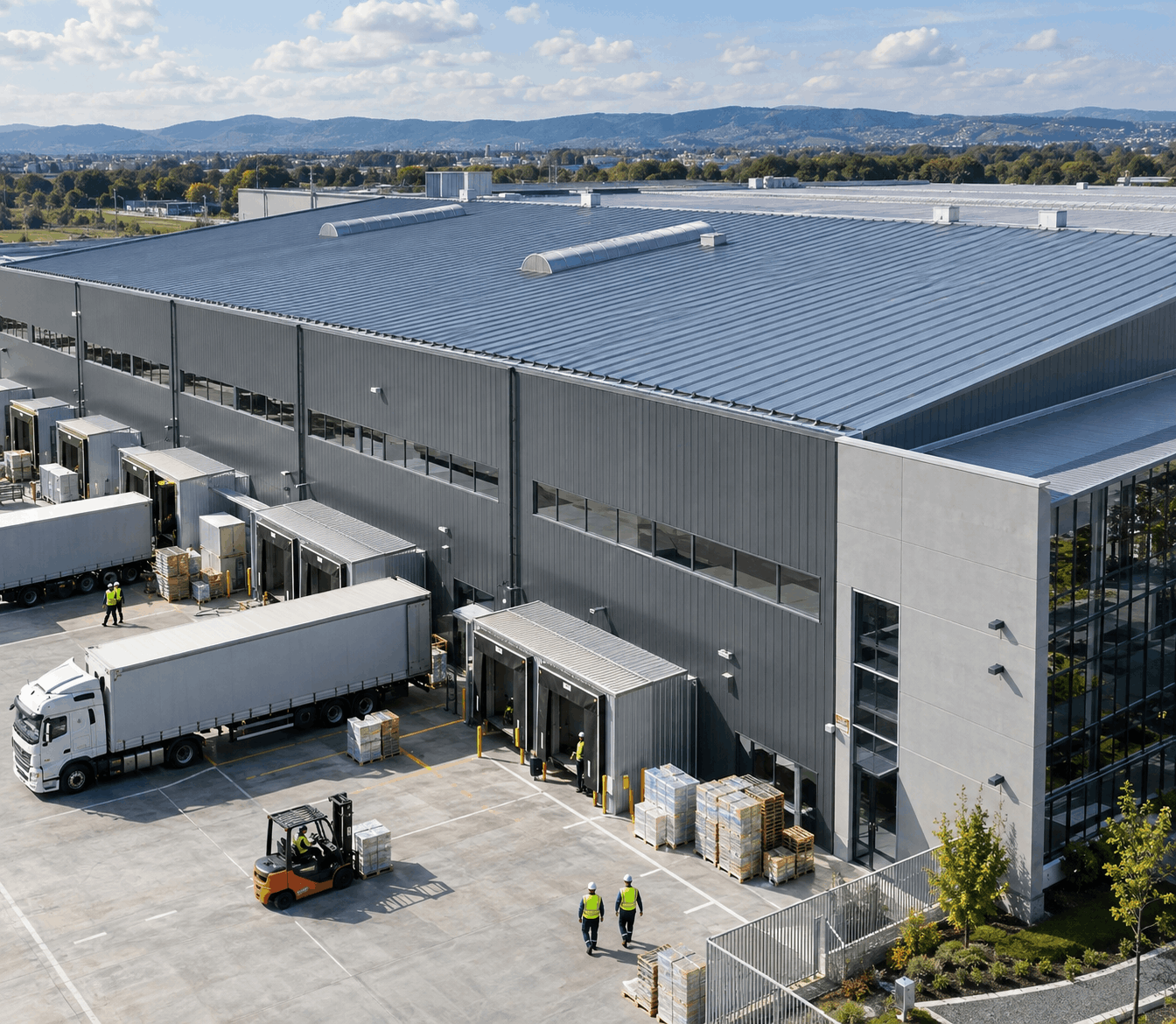

Logistics Hubs

Ideal for logistics parks, distribution centers, and supply chain facilities with large-span roofing needs.

Factories & Manufacturing Units

Suitable for industrial buildings, production plants, and manufacturing units requiring strong weather protection.

Aircraft Hangars

Long-span standing seam roofing systems designed for aviation buildings, hangars, and maintenance bays.

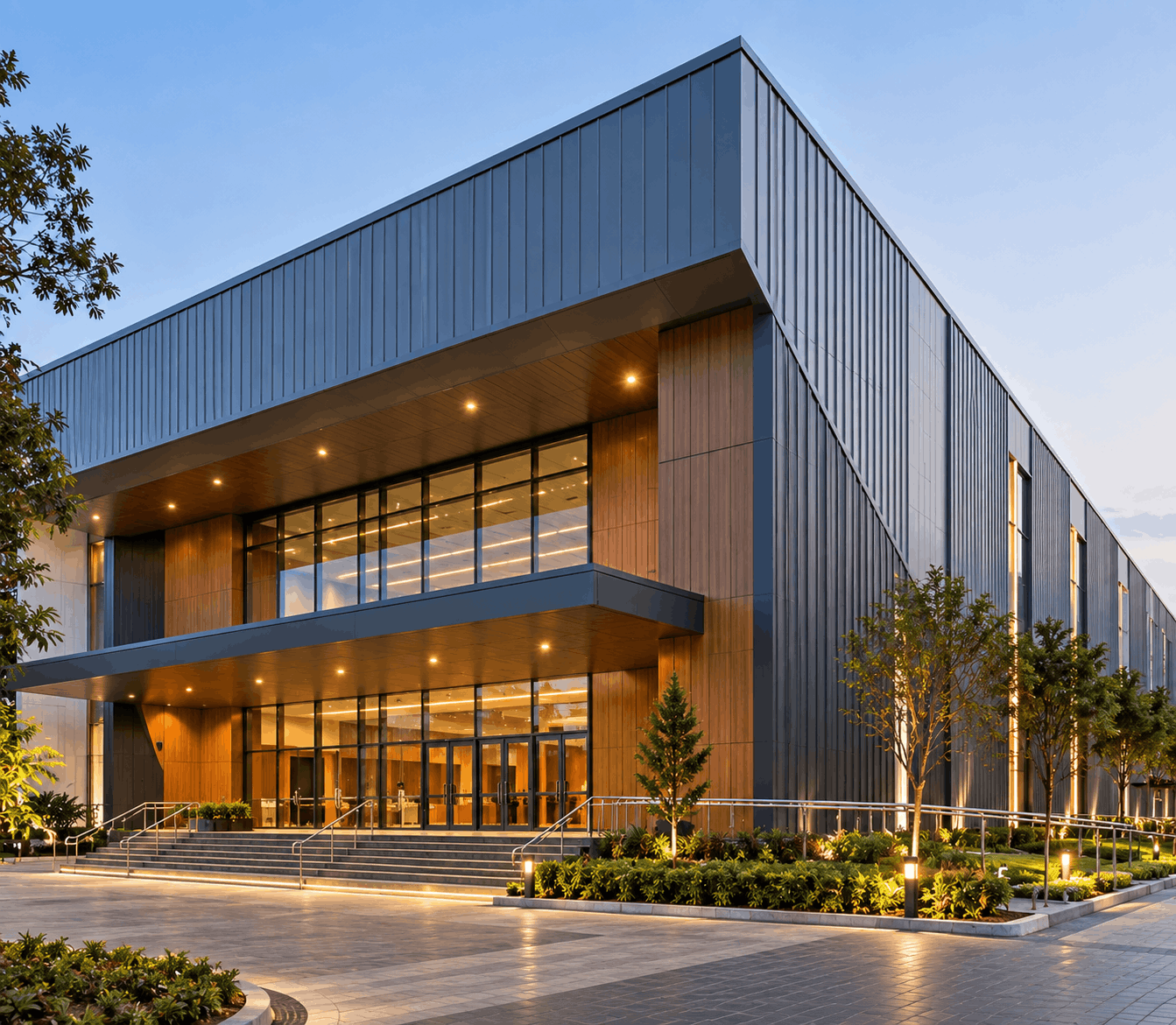

Auditoriums & Convention Centers

Clean, modern roofing solutions for large public buildings with architectural and functional requirements.

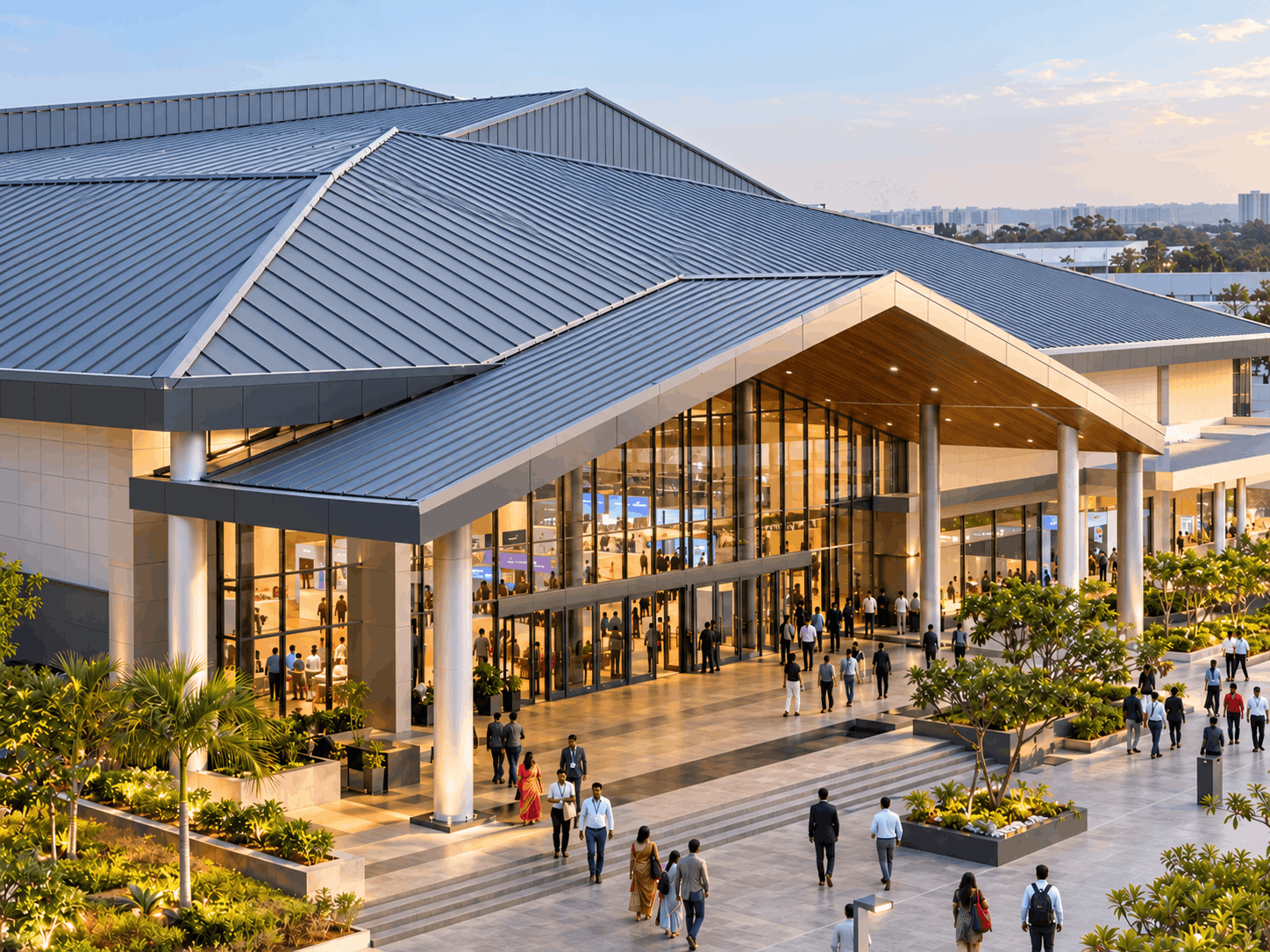

Exhibition Halls

Reliable roofing system for wide-span exhibition spaces, event centers, and commercial halls.

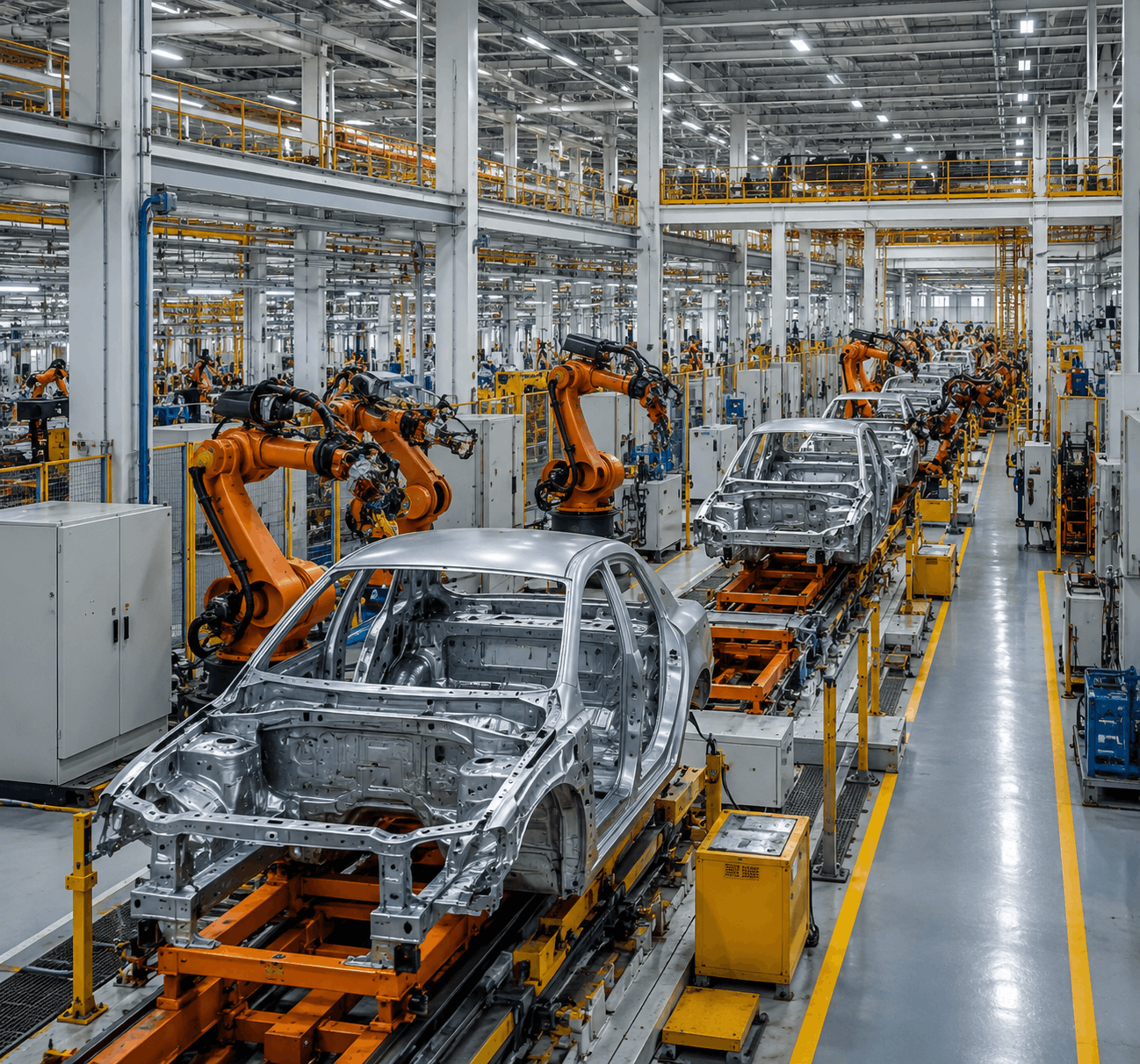

Automobile Service Centers

Strong roofing solution for automobile workshops, service centers, and large covered workspaces.

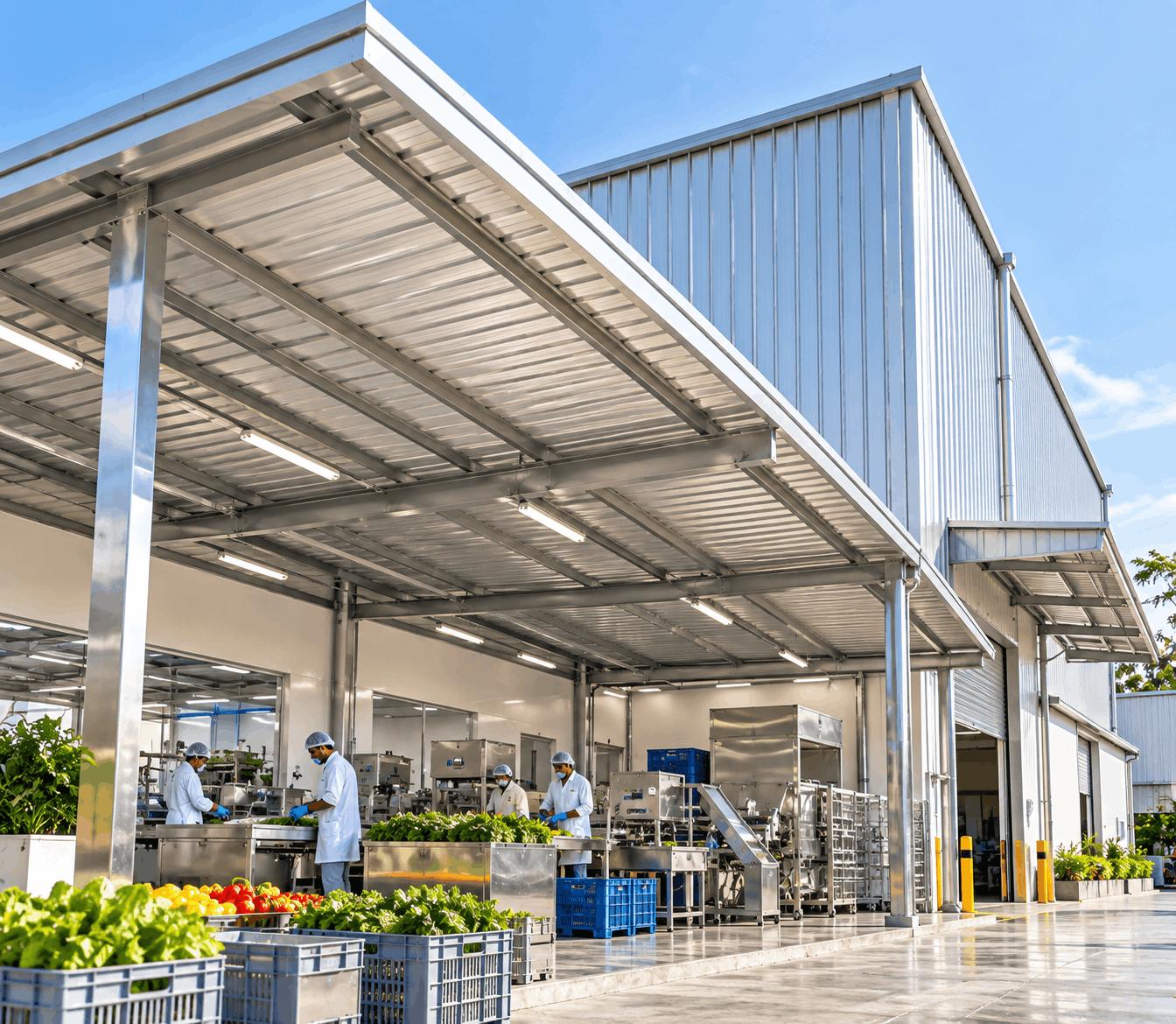

Food Processing Units

Durable roof system suitable for food processing, packaging, and industrial production facilities.

FAQ's

Conventional through-fixed metal roofing fails through three mechanisms over time: fastener washer degradation under thermal cycling, thermal stress cracking at fixed fastener locations where panel movement is restrained, and joint separation at laps and ridges. Standing seam eliminates all three. No fastener penetrates the weather face so no washer fails and no penetration admits water. Panels are thermally free via the clip system so thermal movement causes no stress or cracking. The mechanically seam-locked joint provides a continuous weatherproof barrier without lap sealants that degrade over time. These are structural design differences, not incremental improvements which is why properly installed standing seam roofs consistently outlast through-fixed systems by a wide margin in equivalent conditions.

Standing seam roofing is suitable for a wide range of pitches from very low pitches (as low as 1.5° to 2° for some profiles with factory-applied sealant in the seam lock) through to steep pitches and vertical wall cladding applications. The minimum pitch for a specific profile is determined by the seam height, the seam lock type (snap lock vs mechanically seamed), and the rainfall intensity at the project location. Our team will confirm the appropriate minimum pitch and seam specification for your roof geometry and site location.

Standing seam panels are available in PPGI (prepainted galvanised steel), PPGL (prepainted galvalume), and bare galvalume in the full range of standard industrial and architectural colour options for prepainted material. PPGL provides superior corrosion resistance to PPGI and is the preferred specification for coastal environments, high-humidity industrial locations, and projects requiring extended coating life. Bare galvalume is available where a non-painted finish is specified or where the application requires maximum corrosion resistance without a colour coat. Panel thickness, rib height, and panel width options are confirmed at the specification stage for each project.

Each standing seam panel is fixed to the roof purlin through a concealed clip a formed steel component that engages the raised seam of the panel on both sides and is through-fixed to the purlin below. The clip allows the panel to slide longitudinally (in the direction of the roof slope) as it expands and contracts under temperature change, while holding the panel laterally and preventing uplift under wind load. Because the clip is concealed beneath the seam lock, no fastener is exposed to the weather. The combination of clip-fixed thermal freedom and mechanically seam-locked weatherproof joints is the fundamental design advantage of standing seam over every alternative metal roofing system.

Yes standing seam roofing can be installed over existing purlin structures as part of a roof replacement or upgrade, subject to the existing purlin spacing and structural capacity being compatible with the clip fixing requirements of the selected profile. In retrofit applications, the existing roof cladding is typically removed, the purlin condition assessed and upgraded where necessary, and new standing seam panels installed on the existing structural framework. This approach retains the primary roof structure while delivering a completely new, high-performance weatherproof roofing system at significantly lower cost than full structural replacement.
